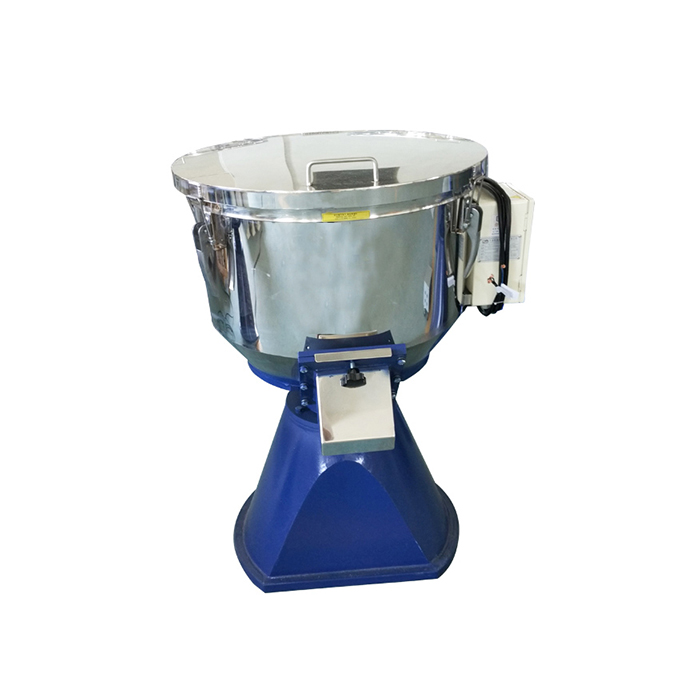

Plastic Color Mixer

Products Mode: A4.4

Description

Basic information:
HHS series are vertical mixers for fast mixing granular materials. Machine with simple structure, easy for operation, maintenance and cleaning. It is mainly use to mix different plastic materials, also widely used in other industries, such as metallurgy and pottery industry.

Features:
• Stainless steel barrel and mixing blades, easy to clean and absolutely no pollution.
• Safety devices ensure the safety of operator and the machine itself.
• Strong and durable;
• Fast mixing, high efficiency and low power consumption;
• Timer range: 0-15 minutes.

Technical Data:

Type	HHS-50E	HHS-100E	HHS-150E	HHS-200E	HHSL-500	HHSL-1000
Sort	Vertical Type
Motor Power(kW)	1.5	3	4	5.5	4kW-4P	4kW-4P
Mixing Capacity(kgs/min)	50/3	100/3	150/4	200/4	2000	3000
Weight(kgs)	140	280	270	360	408	200
Dimensions L×W×H(mm)	790×7900×1115	1035×1035×1225	1150×1150×1355	1225×1225×1480	D 1200×2650	D 1500×2800
Dimensions L×W×H(mm)	790×7900×1115	1035×1035×1225	1150×1150×1355	1225×1225×1480	D 1200×2650	D 1500×2800

Note :
* The standard voltage is 380V, 3Phase, 50Hz.
