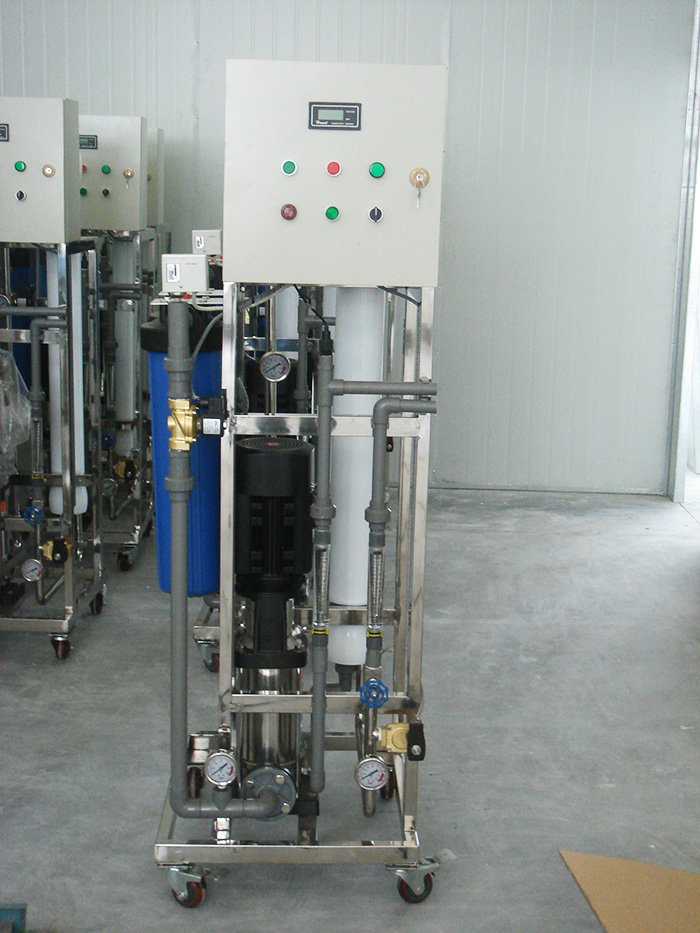

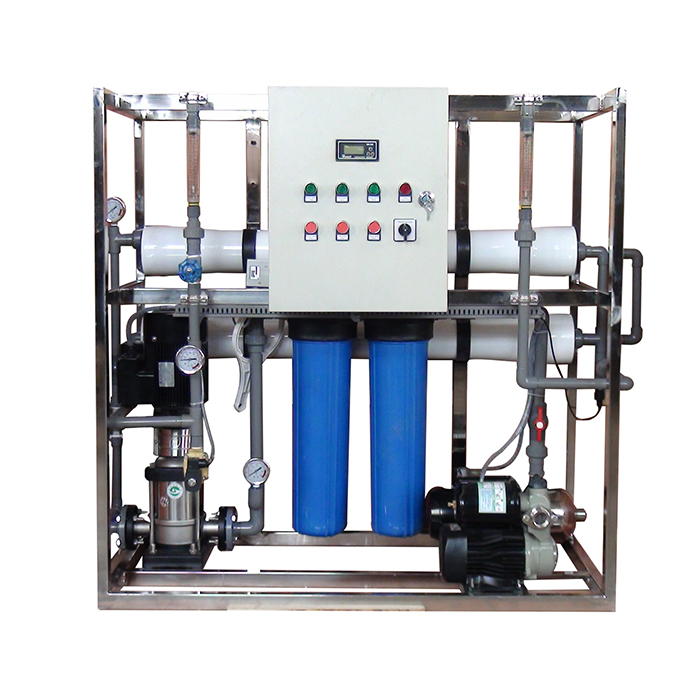

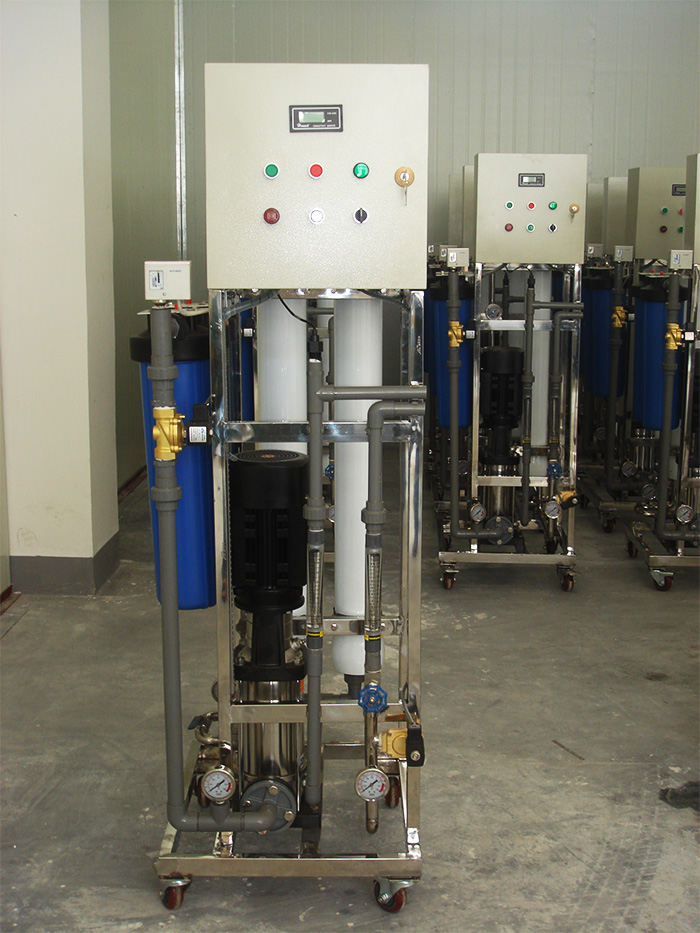

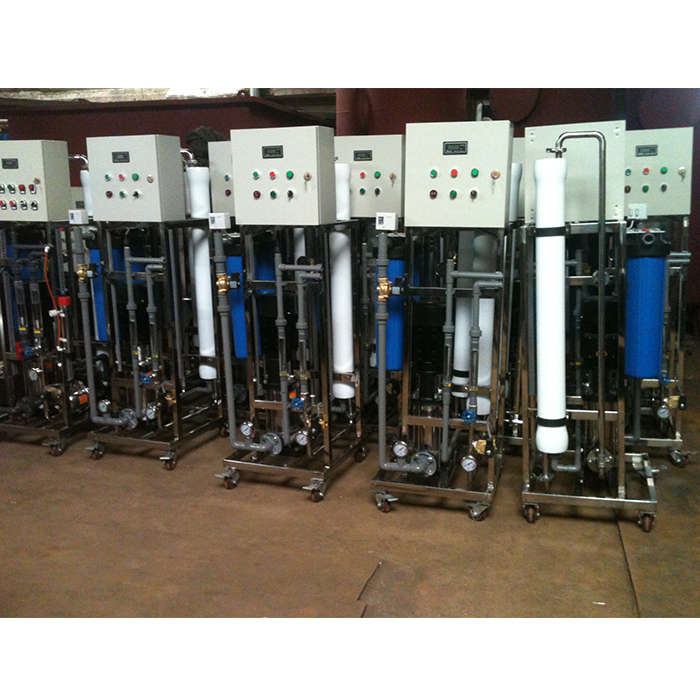

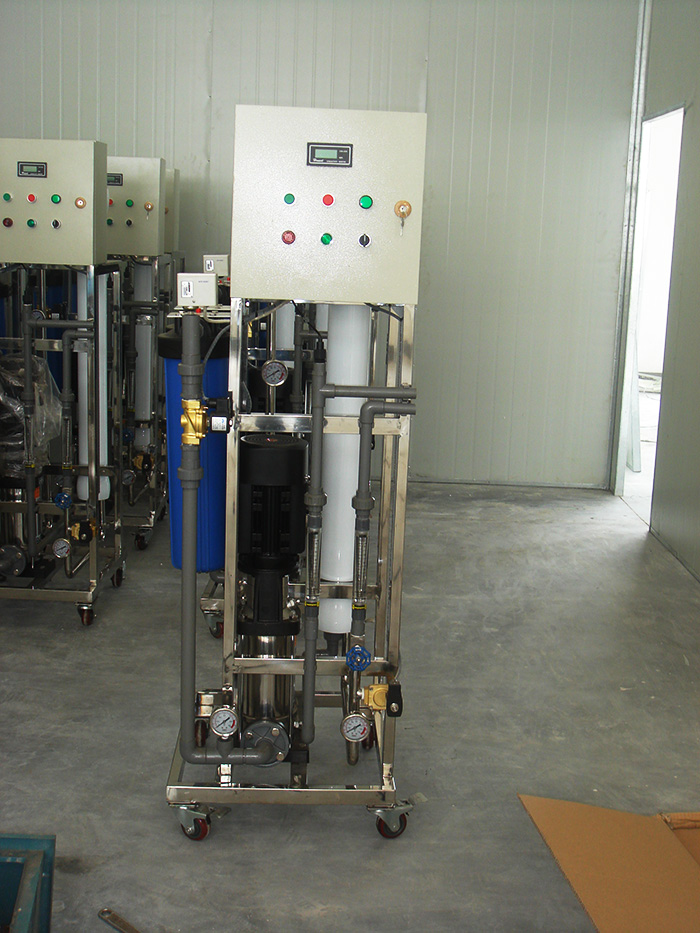

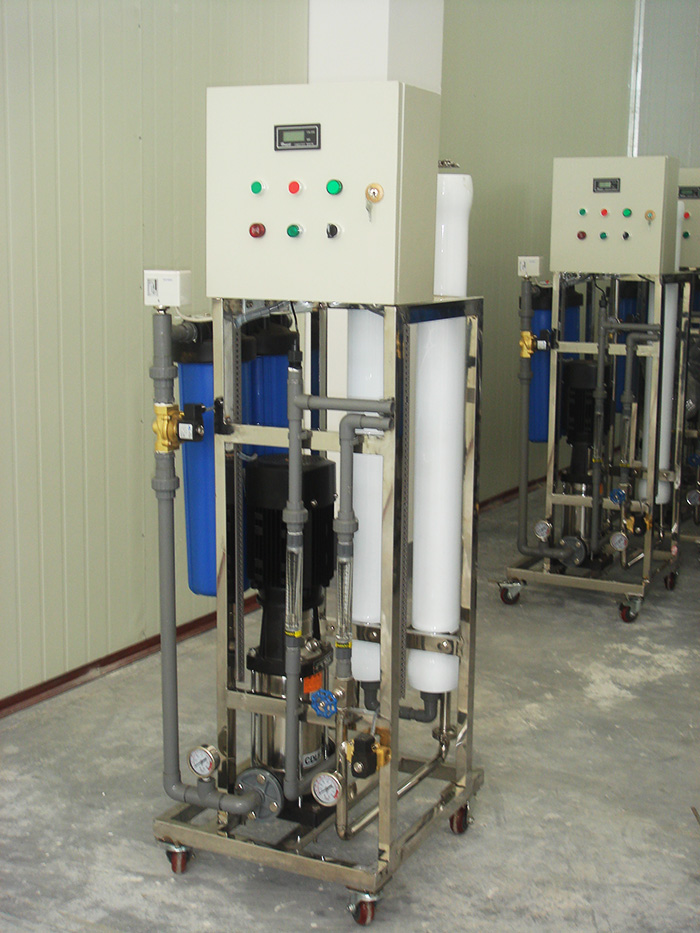

HRO Series Drinking water Reverse Osmosis Unit

Product Introduction:

Reverse osmosis is a membrane separation technique that uses pressure as a driving force by selecting a function of permeating (semi-transmissive) membrane. When the pressure applied in the system is greater than the osmotic pressure of the aqueous solution, the water molecules continuously permeate the membrane. The impurities flowing into the central tube through the product water channel and then flowing out of the water at one end, such as ions, organic matter, bacteria, viruses, etc., are trapped on the water inlet side of the membrane, and then flow out at the concentrated water outlet end, thereby achieving the purpose of separation and purification.
Based on the improvement of daily water quality and dosage, HAUTEK company designs and produces small-scale RO equipment that produces source water from urban tap water. It can be deeply treated on the basis of tap water, removing more than 90% of the impurities in the water, retaining the purity and taste of the water itself, so that the water quality is more in line with the needs of the human body.
Main Use Place:

1. Further purification of household water to provide quality domestic water;
2. Advanced treatment of drinking water in schools and factories;
3. Drinking water after treatment of groundwater sources;
4. Reprocess the restaurant and hotel tap water.

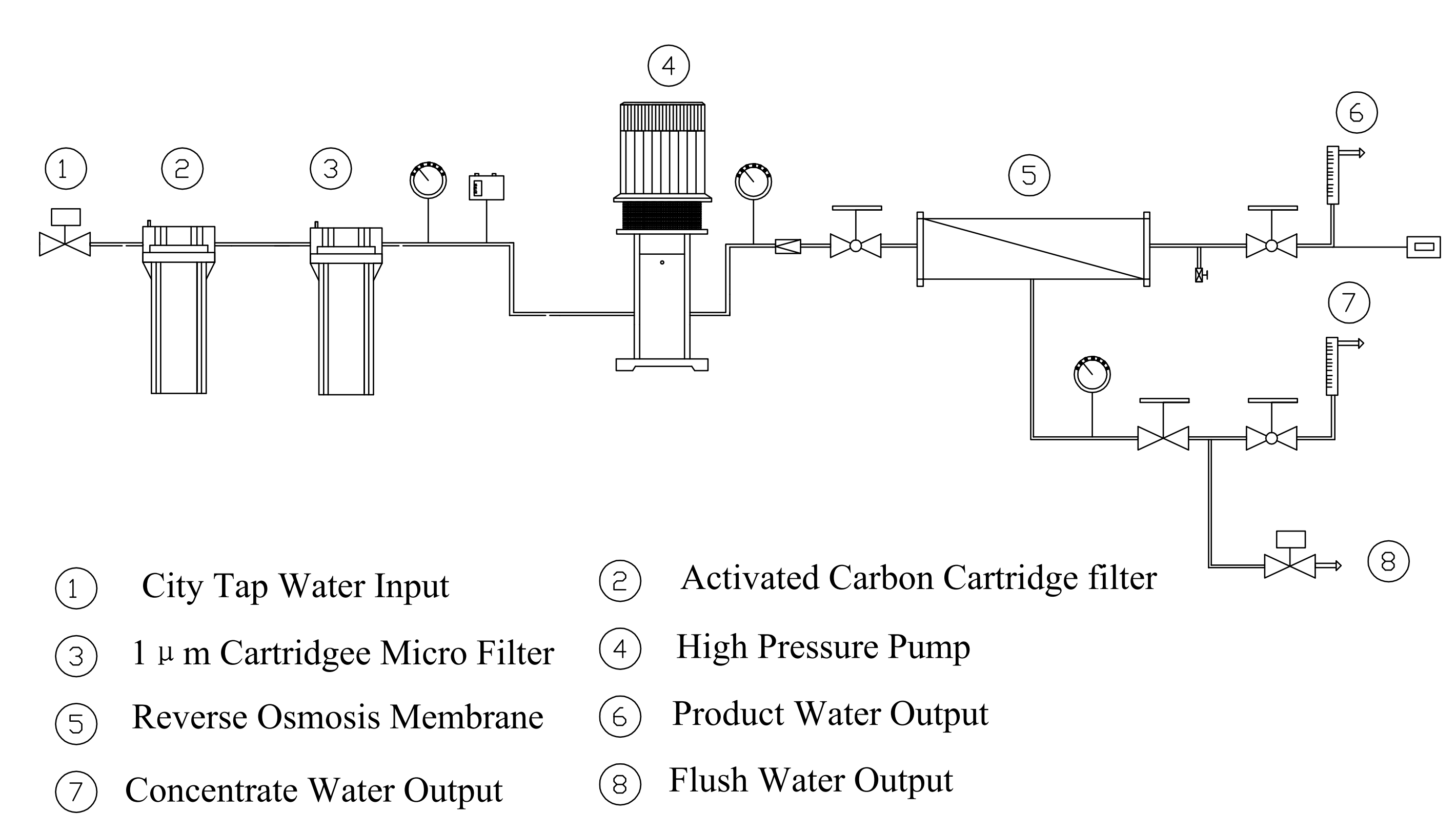

Technical Process:
City tap water→Activated carbon filter→Micro filter→High pressure pump→RO membrane→Product water output

Features:

1.Preposed activity carbon filter & 1um PP cartridge filter to protect high pressure pump and RO membrane;
2.Adopted high quality high pressure pump. Equip with low feed water pressure protector switch;
3.Choose high quality RO membrane with different model to suitable for different raw water source;
4.Flow meter to monitor and adjust the system permeate recovery ratio. Online conductivity monitor for high quality permeate water;
5.Using pressure meters of water feed and output to monitor the pressure difference of RO membrane, to indicate the time for chemical washing or new membrane replaced;
6.Equip with automatic water level switch to control RO unit automatic running, if product water tank full and machine will be stop automatically. Also it have automatic stop valve to guarantee no water flow when machine stops;
7.Automatic fast self-flush RO membrane surface function to reduce the pollution, and prolong the membrane life-span.

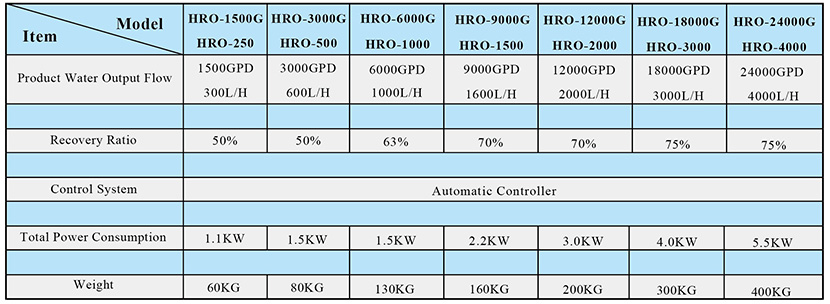

Specification List:

Specifications will be changed when the machines improved without prior notice
