Servo driven pitch change blowing machine AIR series

Products Mode: Up to 6-cavity 9600bph

Minimized heating pitch
Accordion type pitch change
Servo driven
Air recovery
Small machine size, high output
Less power less air consumption less maintenance

Description

Video of AIR series:

Main Advantages:

1. Benefited from small preform heating pitch, less power consumption.

2. Comparing with regular blowing machine, servo motors used for all main movements instead of air cylinders, more output higher precision and less maintenance.

3. High output of single cavity. Stable running 1600BPH per cavity as per 500ml water bottle.

4. Air recovery function, low pressure air source may not be required.

5. Compact design, machine is with less occupying area compared to other machines.

6. Able to connect with air conveyor and filling line directly, and with function of preform feeding stop while bottle jam on air conveyor line.

7. Each blowing circle saves energy and air.

Machine Details

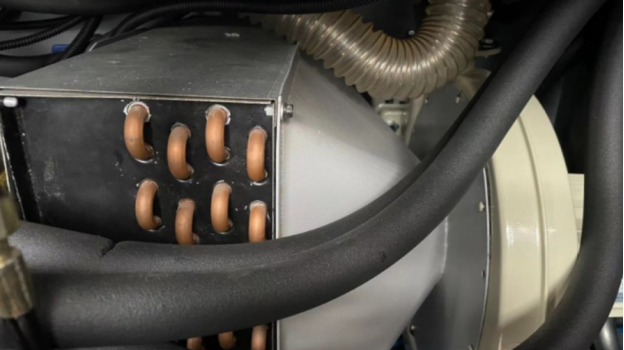

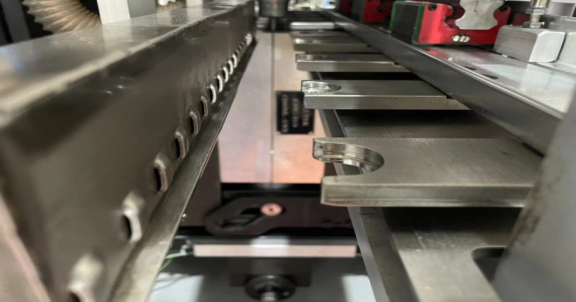

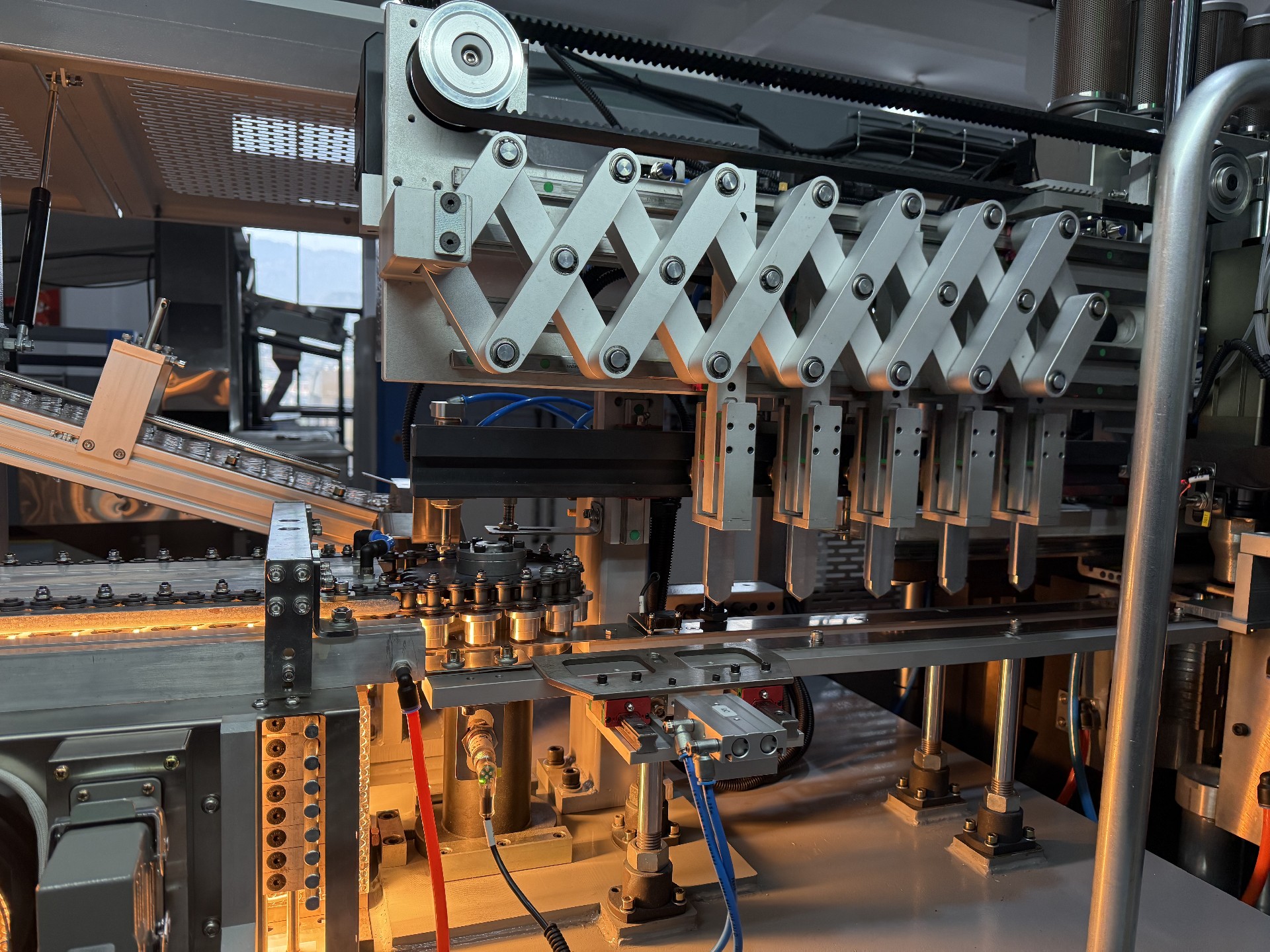

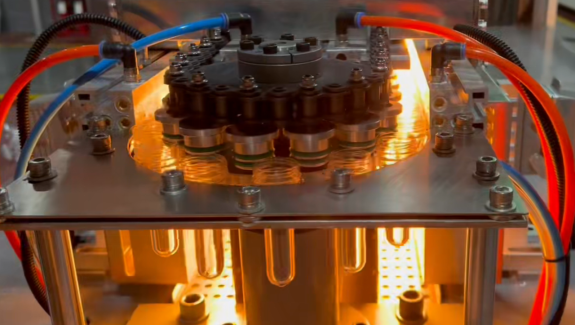

Small heating pitch 38.1mm Saves heating energy		Accordion type pitch change Driven by servo motor, fast and precise Enable machine made with small size		Patented inner cooler Supply cooling air for preform neck cooling		Hard clip to be used No pneumatic clip is used avoid lot of maintenance

AIR series machine models:

No.	Model	Bottle Max.Neck	Cav. Nos	Max. Volume	Output (BPH)*	Max bottle diameter
1	AIR 3-2.5L	30mm	3	2.5L	4800	110mm
2	AIR 4-1.5L	30mm	4	1.5L	6400	95mm
3	AIR 4-2.5L	30mm	4	2.5L	6400	110mm
4	AIR 5-1.5L	30mm	5	1.5L	8000	95mm
5	AIR 6-1L	30mm	6	1L	9600	80mm
6	AIR 4-2.5L(38)	38mm	4	2.5L	4800	95mm
7	AIR 2-5L(48)	48mm	2	5L	2000(5L)	180mm
8	AIR 3-3L(48)	48mm	3	3L	3600(3L)	120mm
