Low Pressure Air Compressor Systems For Machine Operation

Products Mode: B3.2

Description

Main Features:
1. SHANGAIR brand air compressors are with excellent performance, stable running, high efficiency, energy saving and
    long service life.
2. The core part of compressors adapt the innovation design of polygon cylinder shape direct flow valve, air follows valve plate
    surface flow on tangential direction, valve plates distribute in stereo space, with less resistance, less vibration and noise.
3. Manufacturing under advanced technology, SHANGAIR brand air compressors are suitable for long time running,
    lower discharge temperature, less oil consumption, good for PET blowing industry.

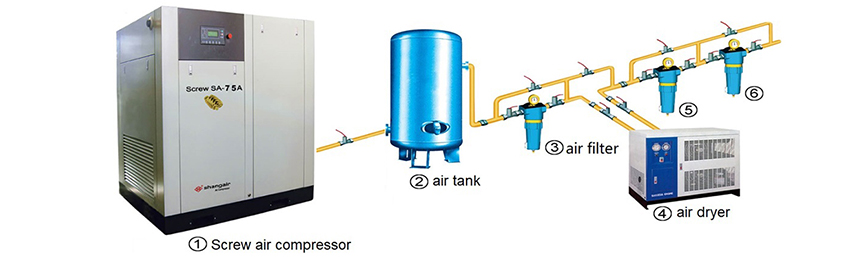

Option 1: Screw air compressor, air tank, air dryer with filters

Specification of Screw Air Compressors
Model	SA-20A	SA-25A	SA-30AZ	SA-40AZ	SA-50AZ	SA-6AZ	SA-75AZ
Capacity(m3/min/bar)	1.82/10	2.52/10	3.2/10	4.5/10	5.6/10	7.1/10	8.7/10
Cooling type	Air cooled
Driving type	Direct driving
Power rate（kw)	15	18.5	22	30	37	45	55
Compressor size	950x800x1160	1150x900x1380	850x1380x1160	1150x900x1470	1000x1500x1330	1000x1500x1330	1250x1900x1600
LxWxH(mm)	950x800x1160	1150x900x1380	850x1380x1160	1150x900x1470	1000x1500x1330	1000x1500x1330	1250x1900x1600
Compressor Weight(kg)	410	550	580	690	850	860	1735

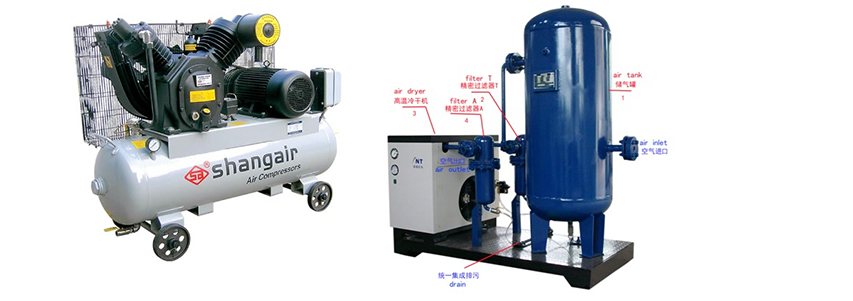

Option 2: Piston type low pressure air compressor, air tank, air dryers with filters

Specifications of Piston Type Low Pressure Air Compressors
Model	Discharge	Pressure	Motor Power	Weight	Size
Model	（Nm3/min）	(bar)	(kw)	(kg)	L×W×H(mm)
09W-1.30/10	1.3	10	11	539	1800×800×1450
09W-1.60/10	1.6	10	15	547	1800×800×1450
09W-2.00/10	2	10	15	547	1800×800×1450
2-09W-3.20/10	3.2	10	2×15	1027	1900×1450×1500
2-09W-4.00/10	4	10	2×15	1027	1900×1450×1500
