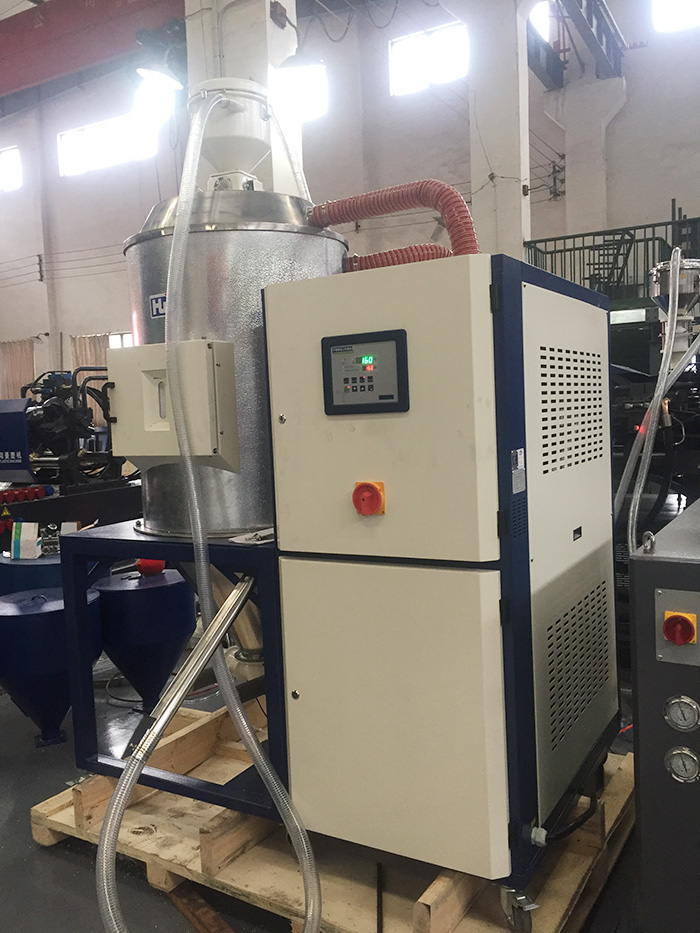

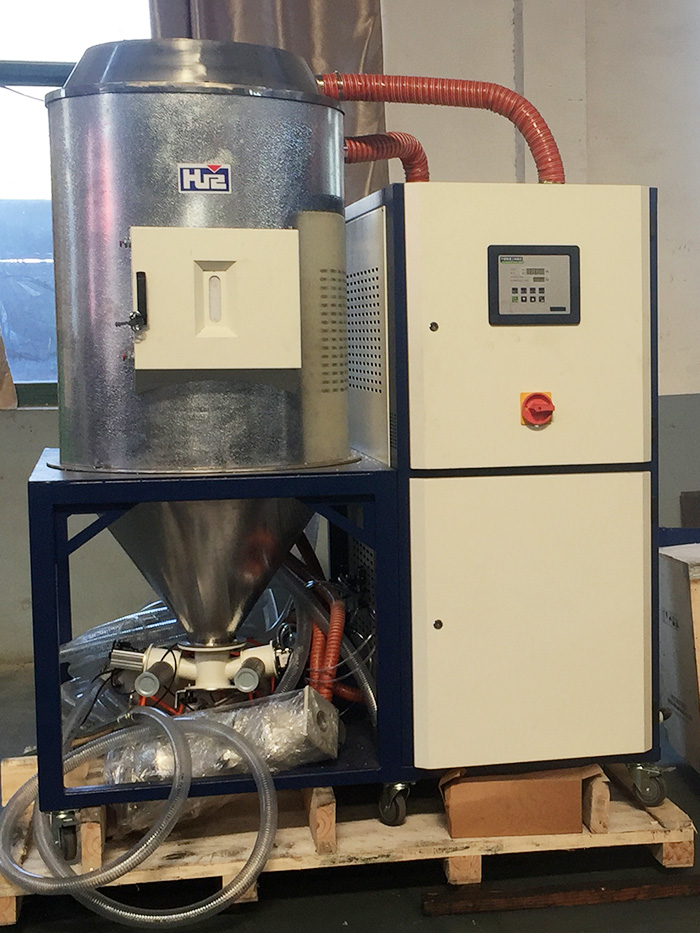

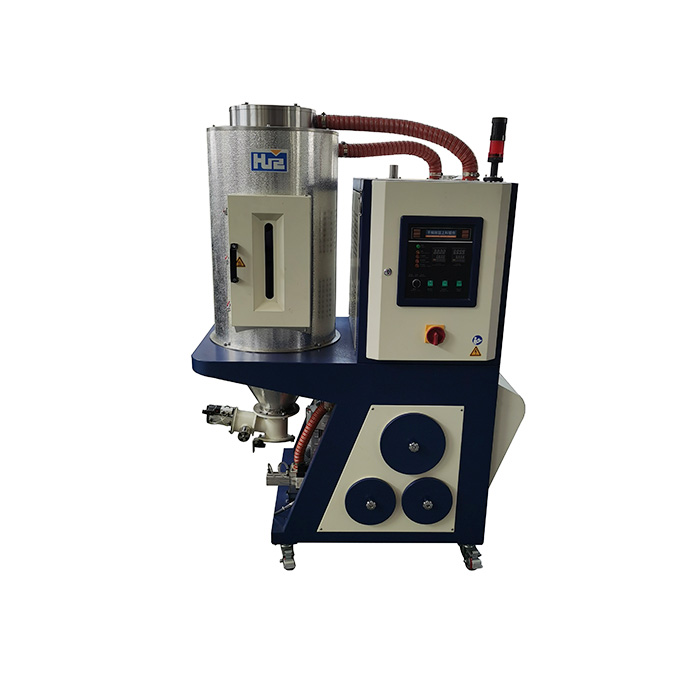

Dehumidifying Drying Loader

Products Mode: A4.2

Description

Basic information:
We can supply dry air machines with low dew point of -40 °, Integrated dehumidifying & drying & two- section conveying functions in one unit.
Beautiful appearance, simple and reasonable design and easy for maintenance.
Suitable for hygroscopic engineering plastics, such as PA, PC, PBT, PET, ABS etc.

Features:
• Adopts P.I.D. Temperature control system, which can precisely control dryness and regeneration temperature.
• All stainless steel double-layer heat-preserving barrel adopts with down-blow tube design, to guarantee no heat loss,
    stable drying temperature and efficiency.
• Fully closed feeding system, that prevents materials from absorbing moisture after being dried.
• With over-temperature protection, motor overload, reverse protection alarms protection and function.
• Based on clients needs, one to one, one to two or two to one models, and all of which Combine
  dehumidifying, drying and two section -feeding are optional.

Technical Data:

Type		HDL-50F	HDL-80F	HDL-120F	HDL-200F
Drying hopper capacity	L	80	120	160	320
Drying air capacity	m3/hour	50	80	120	200
Heater power	kW	3	6	7.5	10.5
Blower power	kW	0.4	0.7	0.85	1.6
Regen heater power	kW	3	4.5	4.5	6
Regen blower power	kW	0.2	0.2	0.2	0.4
Transporting blower power	kW	1.3	1.3	1.3	2.2
Pipe diameter	Inch	1.5	1.5	1.5	1.5
Dimensions (H×W×D)	mm	1700×1285×880	1700×1285×880	1770×1315×920	20800×1280×1575

Type		HDL-300F	HDL-400F	HDL-600F	HDL-1000F
Drying hopper capacity	L	540	660	900	1500
Drying air capacity	m3/hour	300	400	600	1000
Heater power	kW	15	18	25	32
Blower power	kW	2.2	4	5.5	9
Regen heater power	kW	7.5	7.5	10	15
Regen blower power	kW	0.55	0.7	1.6	1.6
Transporting blower power	kW	2.2	2.2	2.2	2.2
Pipe diameter	Inch	1.5	1.5	2	2
Dimensions (H×W×D)	mm	2170×1280×1710	2460×1280×1710	2700×1390×2200	3200×1700×2550
