S Series Servo Energy-saving Injection Molding Machine.:

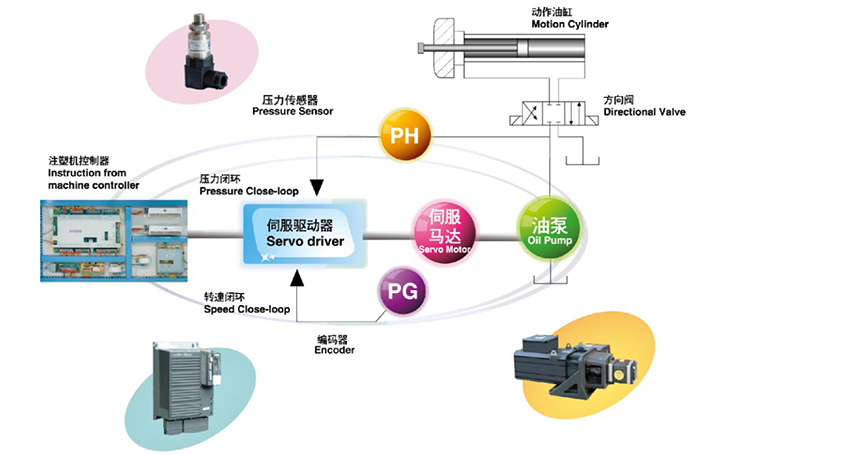

The output power changes with the load. And there is no excess energy waste. The cooling extreme motor is not working and the power consumption is ZERO. Compared with traditional injection molding machine, this series machine can save 20% to 80% of power, which can bring you real power saving and remarkable economic benefits.

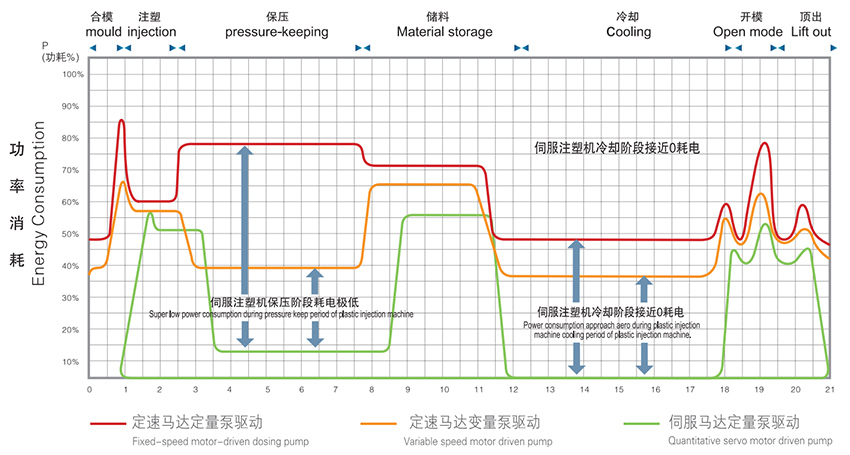

The Comparision Of Systemic Power Consumption:

The Comparision Of Systemic Power Consumption:

Technical Data:

SPECIFICATIONS OF SERVO ENERGYS-SAVING INJECTION MOLDING MACHINE
			110S			140S			170S			220S			260S			290S			350S
			A	B	C	A	B	C	A	B	C	A	B	C	A	B	C	A	B	C	A	B	C
INJECTION UNIT	SCREW DIAMETER	mm	35	38	42	38	42	45	42	45	50	45	50	55	50	55	60	55	60	65	65	70	75
	SCREW L/D RATIO	L/D	22	20.3	18.4	24	22	20.5	23.6	22	19.8	24.4	22	20.0	24.2	22	20.2	24	22	20.3	21.5	20	18.7
	SHOT VOLUME(THEORETICAL)	cm3	163	193.2	235	226	277	318	311	357	441	397	490	593	530	641	763	676	805	945	1161	1347	1548
	SHOT WEIGHT(PS)	g	148	176	214	206	252	289	283	325	402	362	446	540	482	583	694	615	733	860	1057	1226	1407
	INJECTION PRESSURE	Mpa	219	184	152	208	171	149	203	177	143	207	168	138	205	169	142	202.3	170	144.9	195	168	146
	INJECTION RATE	g/s	89	104	128	94	115	132	120	138	170	124	154	186	187	227	270	223.5	266	312.2	275	319	367
	SCREW SPEED	rp.m	0~210			0~185			0~180			0~180			0~180			0~180			0~170
CLAMPING UNIT	CLAMPING FORCE	KN	1100			1400			1700			2200			2600			2900			3500
	OPEN STROKE	mm	350			380			435			475			540			590			670
	SPACE BETWEEN TIE BARS(WxH)	mm	370×370			420×420			470×470			520×520			570×570			620×620			710×630
	MOULD THICKNESS	mm	150~380			160~460			180~520			200~560			220~600			200~630			260~710
	EJECTOR FORCE	KN	38			50			50			70			70			70			90
	EJECTOR STROKE	mm	120			140			140			150			150			150			200
OTHERS	HEATER POWER	kW	7.5			8			12.5			14			19			19			24.5
	PUMP MOTOR POWER	kW	13			13			18.5			18.5			22			30			37
	MAX. PUMP PRESSURE	Mpa	16			16			16			16			16			16			16
	MACHINE DIMENSION(LxWxH)	m	4.3×1.3×2.0			4.6×1.5×2.1			5.1×1.5×2.2			5.7×1.6×2.3			6.2×1.5×2.2			6.3×1.7×2.4			7.3×1.96×2.41
	MACHINE WEIGHT	t	3.4			4			6			7			8.3			9.3			12.5
	OIL BOX CAPACITY	L	200			235			260			300			385			385			700

We have more models of this series: 400S, 450S, 550S, 650S, 750S, 1000S, 1200S, details specification upon customers'inquiry.

Main Features:
• Adopting integral casting European standard T slot mold plate, loading and unloading molds more easily.
• Enlarged hydraulic system make the injection speed faster.
• Close loop control synchronizes composite action, makes the product shaping cycle time shorter.
• Low-noise while machine running, especially for low speed running.

Control Unit:

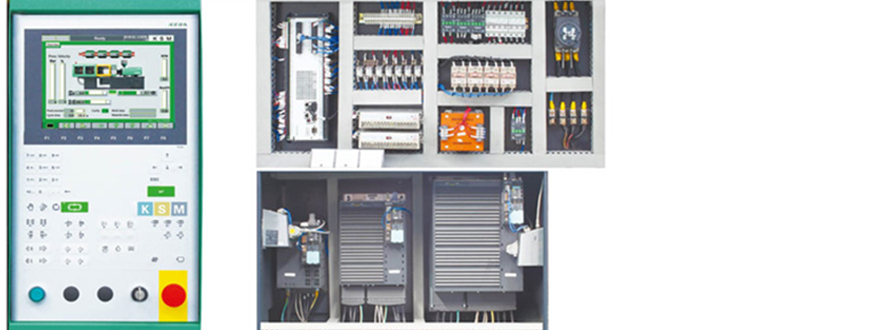

• Special PLC computer controller for plastic injection machine use, control and display relatively independent with high reliability.
• Technical parameters pre-setting and storage function.
• Parameters information protection function.
• Charging barrel temperature deviation automatic adjustment function.
• Abnormal alarm function.
• Front and back door emergency stop button.
• Time monitoring can display the condition of each motion.
• Electric motor safety protection device.
• Robotic pincher interface.
• Material feeding photoelectric switch.
• System hardware I/Q detection function.
• Charging barrel temperature is controlled accurately by computer setting and PID closed-loop manner.
• Screen protection function, prolong the life of screen using.
• Full-enclosed electrical-controlled box, electrical components are neatly arranged, never interfere with each other .

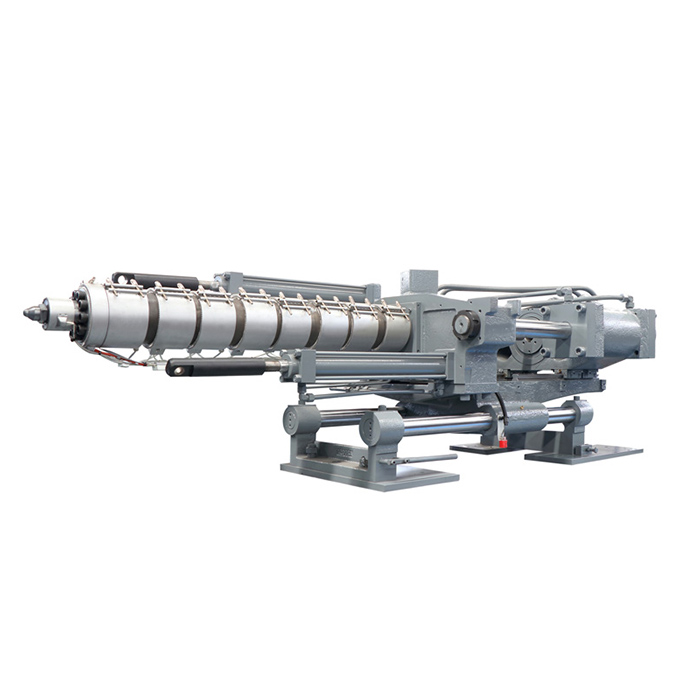

Injection Unit:

• PID temperature control have precise temperature of barrel.
• There are several screws and barrels with optimal design, Respectively, nitride, hard chromium plating, dual-metal,
   which is suitable for different plastic material’s request
• Two-guided direct line guide bar support, double-balanced rapid injection.

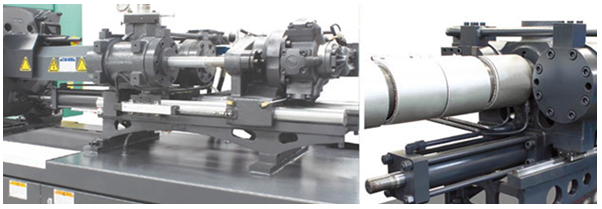

• The high-torque hydraulic motors offer a stable plasticizing capacity, high-precision Linear transducer device position
   detection enable accurate measurement.
• Multi-injection speed and pressure and multistage pressure settings, switch from the injection time, location, pressure
   control to ensure the quality of molding.
• Multistage back-pressure and pre-injection speed computer-controlled, screw with the features of pre-injection anti-flow
   and clean material automatic.
• Prevent cold material starting function to ensure that the screw, barrel will not to be damaged.

Clamping Unit:

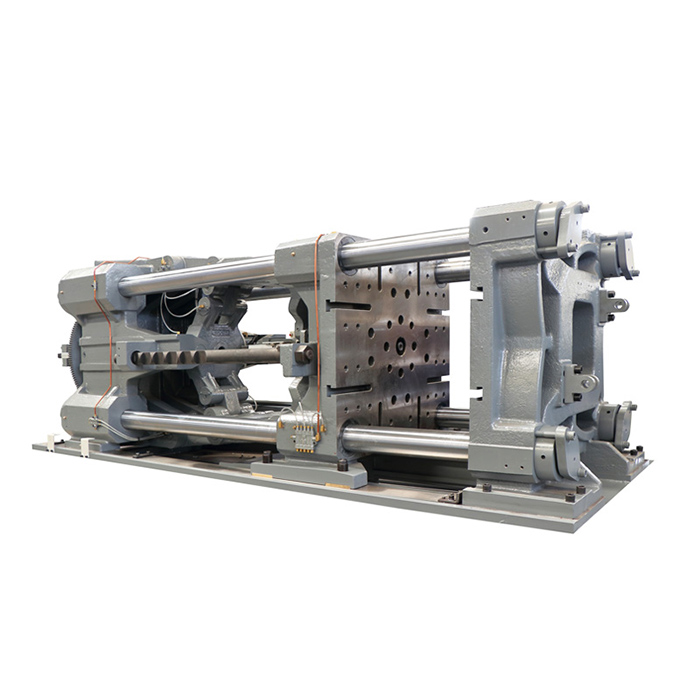

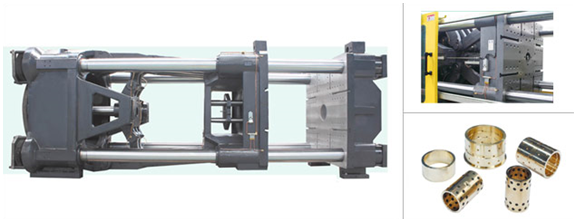

• Five-point double toggle diagonal structure, Tempalate design by computer optimization.
• Sensitive low-pressure mold protection device-eject.
• Multiple stages control for mold opening clamping pressure, speed, positioning control.
• Hydraulic motor-driving gear mold adjustment.
• Special technique treatment, reliable strength.
• Automatic centralized lubrication system.
• Mold open and clamping, eject position controlled by Linear transducer.
• Automatic mould adjustment function.
• Robotic pincher positioning interface.
• Core pulling device is suitable for the complicate structure mould.

Clamping Unit:

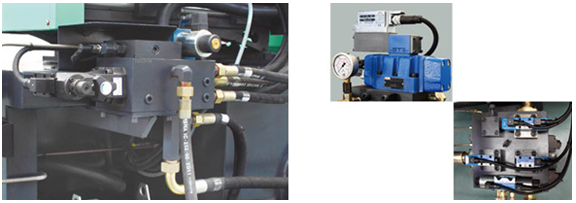

• The manual plug valve hydraulic system make the machine having quick and smooth motion response.
• Pressure and flow double proportional valve control.
• High-performance imported hydraulic unit with optimizing allocation.
• The oil tank has a big opening hole so can be cleaned easily.

Standard Accessory:
• Anti-vobrating pad.
• Spare parts kit.
• Tool box.
• Lubrication oil.
