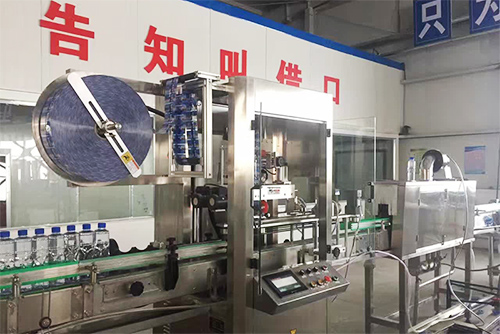

Automatic Sleeve Labeling Machine

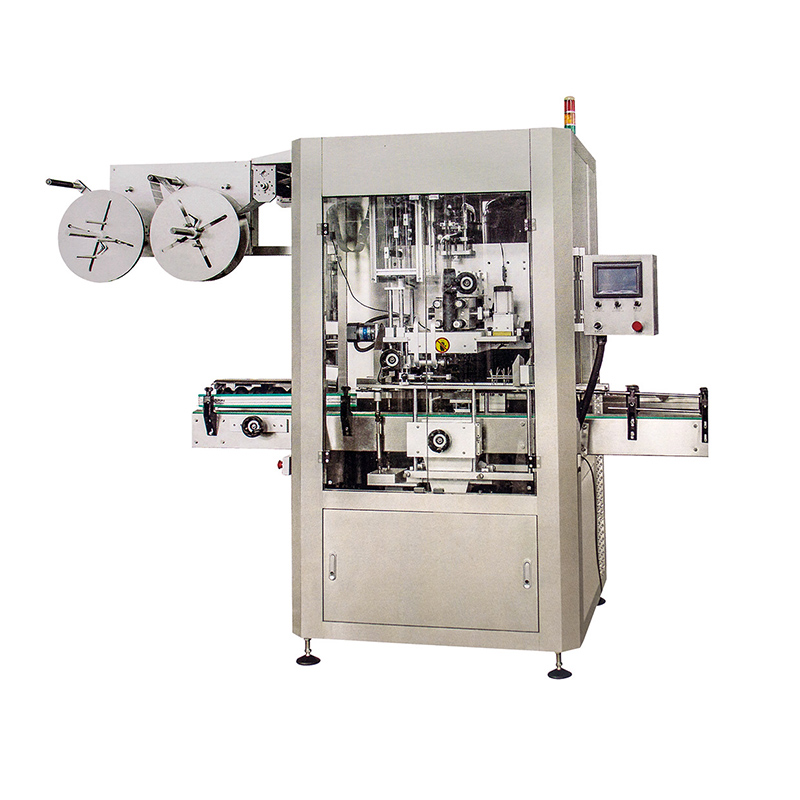

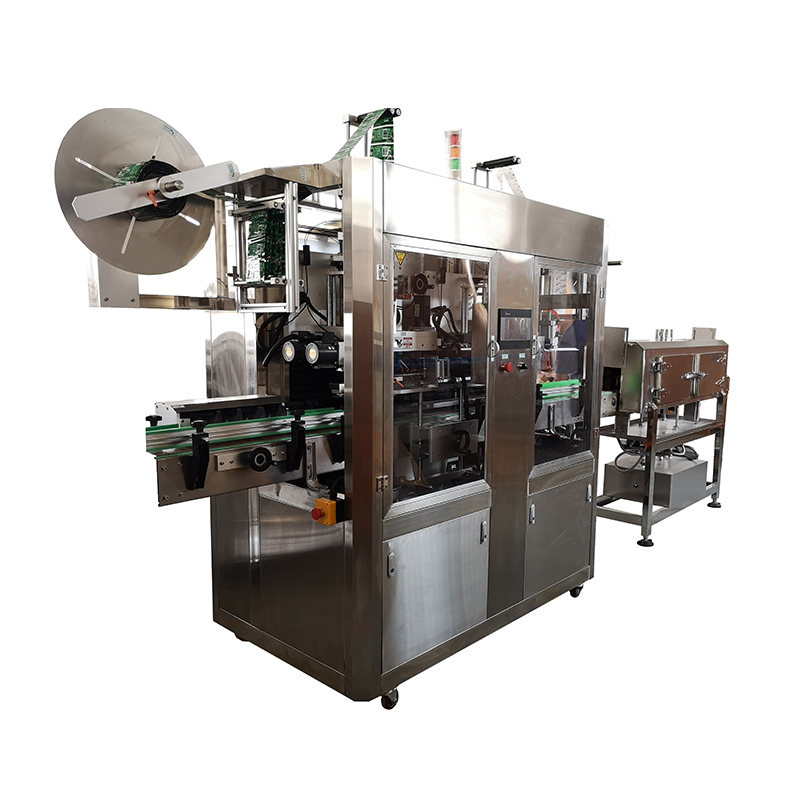

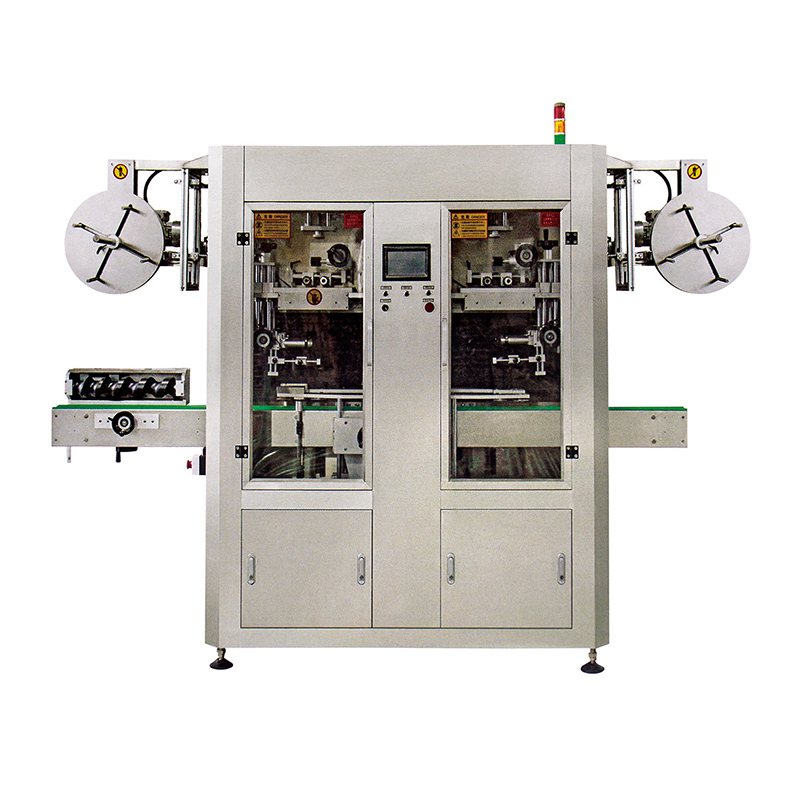

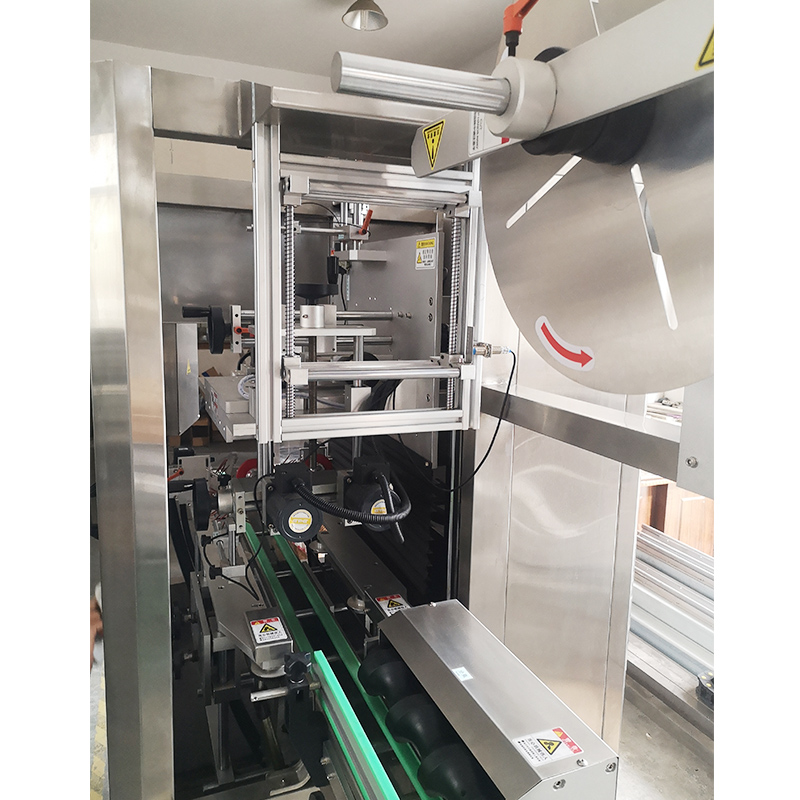

1. Main sleeve labeling machine :

Characteristics:

 • Advanced technology: Japan-made motor controls synchronous cutting system to ensure long use life of cutting tool and high precision label.

 • Highly effective production speed: 600bottles/per minute (standard bottle). It can work with the production line or just work alone.

 • Label-controlling sensor shelf

 • Elastic choice: The machine head can be leaned to fit round bottle, square bottle, elliptic bottle, top of bottle and body of bottle. The latest double material-providing system is applied to change material alternately with less time.

 • Automatic cutting tool positioning system: Search and position automatically by touching the screen.

 • A unique synchronous cutting base: The cutting base doesn’t need changing within the range of specification. If the specification needs changing,  it can be done within two minutes.

 • Simple and safe operation: A colored people-controlling operation is used with both English and Chinese versions on it. It needn’t watching when working.  An alarm instrument is installed.

 • Low-consumption maintenance cost: low-cost abandoned blade for easy change

 • Long use life of cutting tools: steel-connecting transmission mechanism, reciprocating cutting and prolonged use life.

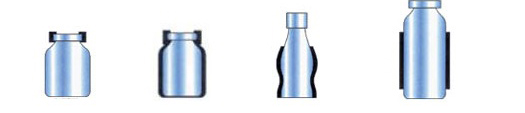

 Labeling position:

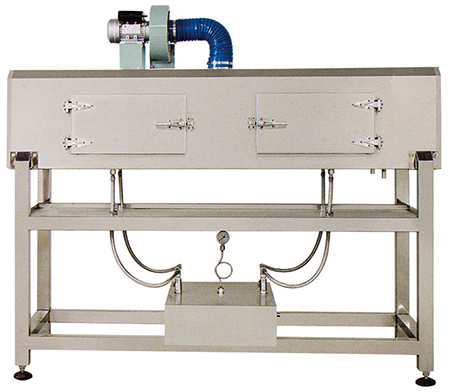

2. Shrinking tunnel:

Main feature

The shrinking tunnel is chosen special spray nozzle by separate stages, all the nozzles can be adjusted. According to different bottle shape, like round, square, flat bottle or cup, all of them can be shrink step by step and it can reach good effect after shrinking. The tunnel body was made by stainless steel material, it have special design with water-proof, exhaust function, so it can extend working life and easy maintenance, operating.

Based on different material/size label and different bottle shape/size, we supply two kinds label shrinking tunnel, one is heated by steam boiler and another is heated by electric heating tube.

3. Steam boiler

The water is feed into the series of whole automatic electric heating generator by high pressure potential vortex pump made of cooper with short water supply time and durable service a floating ball for liquid level is fixed in the water tank to automatically control the water inlet. The working system is all automatically controlled after connecting the water supply and power supply for 3~6 minutes , it can output the steam continuously with high working efficiency.
