Automatic Pallet Wrapping Machines
Products Mode:
D4.4
The pallet wrapping machine is suitable for container transportation of bulk cargo and packaging of loose pallets. It can improve logistics efficiency, reduce loss during transportation, and has the advantages of dustproof, moisture-proof, and reduced packaging costs. It is an ideal choice for improving product packaging. Widely used in glass products, hardware tools, electronic appliances, papermaking, ceramics, chemicals, food, beverages, building materials and other industries.
Pallet Wrapping Machine adopts programmable control(frequency converter),reliable in performance, convenient.
In operation; The lapping type and time can be designed on customers' requirements.
Equipped with a photoelectric detector, automatically testing the goods height and controlling the travel limit.
Rotary table can reset automatically, thus ensuring correction-and out position of the tray. Convenient in film roll Replacement, LLDPE film with outside diameter<280mm, width<500mm and paper core 76mm can be used.

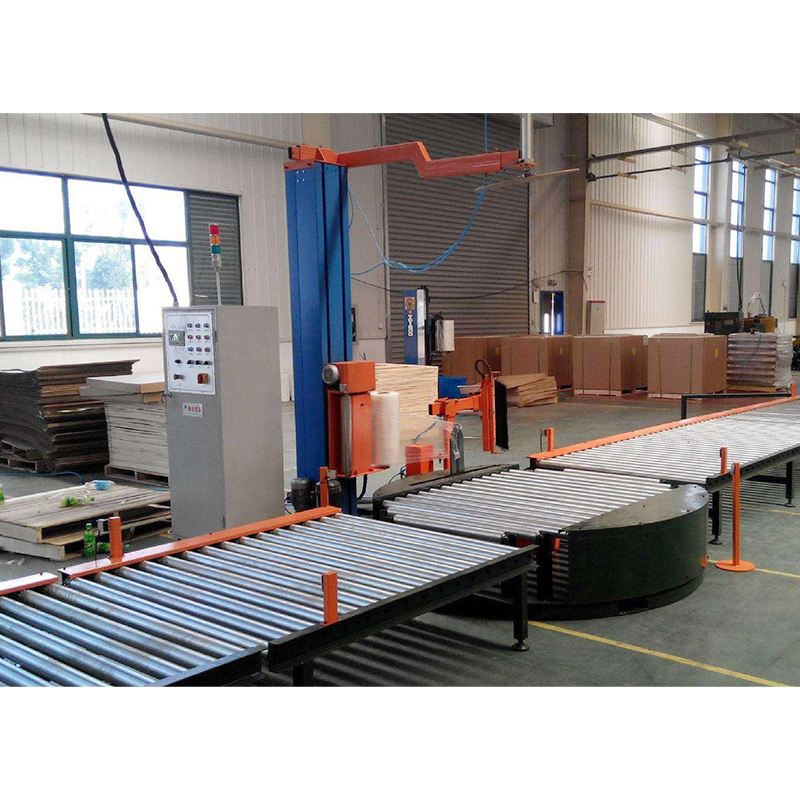

Custom-mode specification is available and also providing a complete set of packing system of conveying line.
| Model | T-1650 |
| Turntable diameter (mm) | Φ1650 |
| Wrapping height (mm) | 2400 |
| Column height (mm) | 2700 |
| Turntable height (mm) | 78 |
| Turntable load (kg) | 1500 |
| Electric source | AC220V, 50HZ |
| Power (KW) | 1.5 |
| Turntable speed (rpm) | 0~12 |
| Packing material | LLDPE Film |
| Film thickness (μm) | 17~35 |
| Film width (mm) | 500 |
| Film roll inner diameter (mm) | Φ76.2 |
| Film roll outer diameter (mm) | 240 (max) |
Main parts:
| Name | Brand |
| PLC | Mitsubishi (Japan) or Schneider (France) or Siemens (Germany) |
| Touch screen | Mitsubishi (Japan) or Weinview (China) or Schneider (France) |
| Pneumatic parts | AirTec (TaiWan) |
| Low-voltage parts | Schneider (France) |
| Frequency converter | Schneider (France) |
| Photoelectric sensor | AUTOINCS (Korea) or OMORON (Japan) Or Schneider (France) |
| Servo motor | Mitsubishi (Japan) or Schneider (France) or Panasonic (Japan) |
| Main motor | ChengPang (TaiWan) |
| Machine frame | Hautek (China) |
